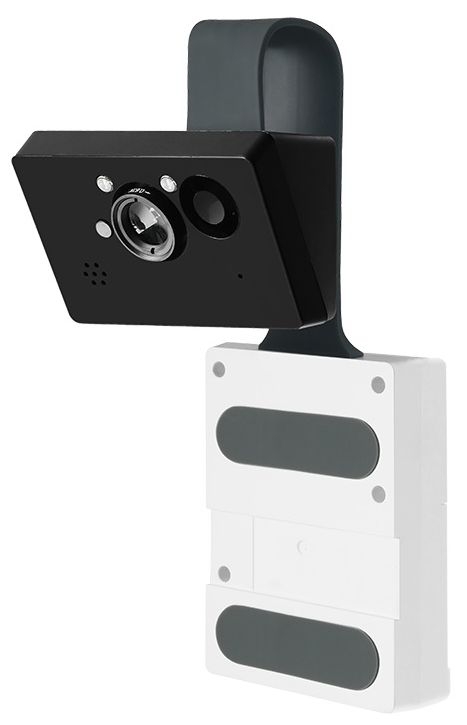

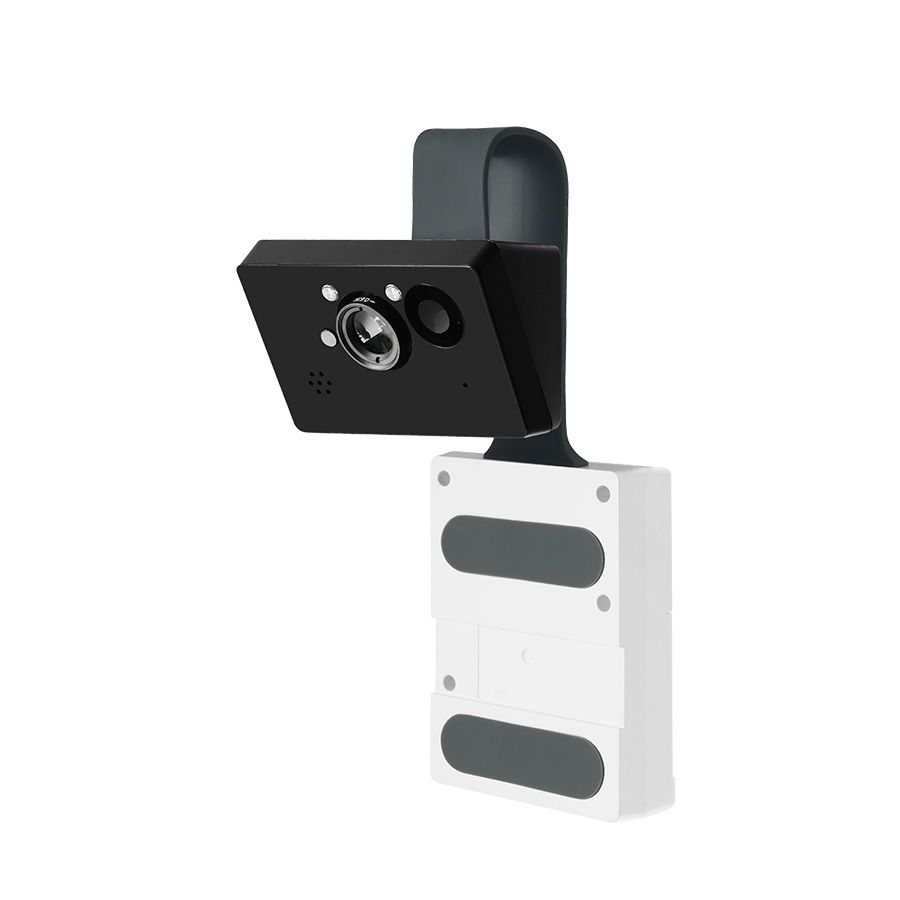

Edimax IC-6230DC Smart Wireless Door Hook Network Camera
1/6.5" CMOS Sensor, 2.59mm Lens(F2.8), 320x240(Up to 30fps), White LED, Built-In Microphone/Speaker

[More images available]
Product May Vary From Image

Our Price:
You Save:$28.80
Part No:424416
Manuf No:IC-6230DC
Ship Weight:2 KG  Details
Usually Ships: 1-3 Days  More info
Date Added:13/11/2017
Rating: Not Rated
Product Description



  • Extremely easy installation with a door hook.
  • Don’t miss any delivers while you’re out.
  • Enhanced motion detection with passive infrared (PIR) sensor.
  • Motion-detection push notifications.
  • Two-way audio. See who’s out there and answer your door from anywhere.
  • Easy DIY installation with Plug-n-View for configuration-free setup.
  • 640 x 480 VGA video quality from your door.
  • Motion-JPEG video compression.
  • Flexible storage options: supports 64G microSD/NAS/Cloud.
  • Night vision to see up to 1.5 meters.


The IC-6230DC is a brand new wireless door camera that hooks securely over the door without any screws or installation tools. It fits any door and provides crisp images along with an advanced motion detection system with passive infrared (PIR) sensor.Including mobile push notifications and powerful night vision for clear views in the dark. Just check your smartphone using the free all-in-one EdiLife iOS & Android app to see whos there from the safety of your home or while youre out, day or night.

Comfort and Convenience

Always experience the comfort and convenience of a smart, connected the door hook with IC-6230DC from the mobile devices.

  • 24/7 easy remote monitoring on your smartphone or tablet.
  • See and answer your door and speak to visitors from anywhere.
  • Fits securely to door and features push notification alerts.
  • PIR, sound or motion detection triggered snapshots and recording.


Live View and Two-Way Audio

Built-in high-quality microphone and speaker for two-way voice communication, so you can view & talk with whoever’s there from anywhere.

Screwless & Wireless Installation

  • DIY for your own surveillance without installation fees or monthly charges.
  • Just hook and attached over the door with ease.
  • Easy smartphone setup. Just pair the free EdiLife app with the IC-6230DC to watch a live stream in no time.

IC-6230DC Interface Diagram


IC-6230DC Smart Wireless Door Hook Network Camera

Dimensions & Weight

Camera: Oudoor Unit: 48mm(H) x 82mm(W) x 43mm(D), Indoor Unit: 110mm(H) x 76mm(W) x 26mm(D)

Wireless Receiver: 105mm(H) x 30.5mm(W) x 21mm (D)


Min Illumination: 0.1 Lux (Daylight < 4 Lux, turn on white LED)

Sensor: 1/6.5" CMOS

Lens: 2.59mm / F2.8

Viewing Angle: Digital 90

Night View: White LED * 2, upto 1.5 meters


IEEE 802.3/802.3u

2.4G FHSS / 1 detachable antenna


MJPEG video compression

640 x 480 up to 15 fps / 320 x 240 up to 30 fps

Resolution: VGA (640 x480), QVGA (320 x 240)

Frame rate: 5, 10, 15, 20, 24 or 30 fps

Built-in microphone & speaker

Two-way audio


EdiLife: free mobile app for iPhone, iPad & Android

EdiVeiw Finder: web management interface fro Windows/Mac

Firmware upgradable


PIR sensor, motion/sound detection trigger recording and alerts to MicroSD/SDHC card, email and FTP

Supports 64G microSD/SDHC card slot for local storage

Extend free cloud storage to personal accounts or other 3rd party storage options


Wireless Receiver- 12VDC/1A

Camera: AA Battery x 4

Operating Conditions

040C, Humidity: 2080% RH (non-condensing)

Product Warranty

12 Month Return To Base
