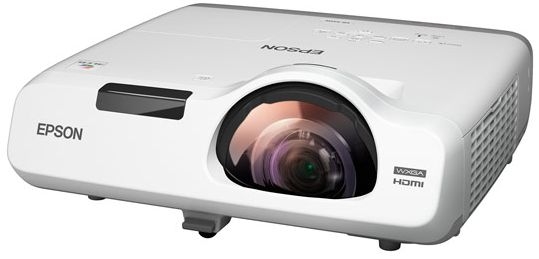

Overview
Epson EB-525W short throw projectors provide ultra-bright image quality up to
2,800 lumens both in high colour brightness and in white brightness with 3LCD,
3-chip technology. The EB-525W short throw projectors are ideal for delivering
large and engaging presentation content in the classroom or office without
having the restriction of space. The EB-525W also features a newly developed
high precision short throw lens with greater sharpness and improved focus
levels. The long lasting lamp, projecting up to 10,000 lamp hours in ECO mode
gives an extended period of reliable performance. Suitable for desktop use with
convenient table top placement or using the optional wall mount (ELP-MB45), the
EB-525W short throw offers flexible installation in any environment.
Key Features & Benefits
- 3 x Brighter Colours and reliable performance* 3LCD, 3-Chip Technology.
Look for both high colour brightness and high white brightness.
- Crisp Clear Resolution Featuring WXGA image resolution (16:10).
- Large and engaging presentations, even in small spaces Project large
images from short distances with minimal shadows and glare.
- Long Lasting lamp, low-cost lamp maintenance Up to 10,000 hours in ECO
mode.
- Versatile Connectivity Easily integrate with any system using HDMI and the
optional Epson Control box (ELP-CB02).
- Convenient collaboration for BYOD classrooms Wirelessly share and compare
students work from multiple devices, simultaneously, with EasyMP
software / Multi-PC Projection function.
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour,
incredible detail and solid reliability. 3LCDs 3-chip architecture dedicates an
entire chip to process each primary colour red, green and blue, continuously.
Unlike single-chip technology that delivers colour sequentially, you get
full-time colour. The result is vibrant, realistic images and video all
delivered with 3LCDs true-to-life colour.
Up to 3x Brighter Colours with Epson Projectors*
Epson projectors use 3LCD Engines that have no colour wheel with a white
segment and therefore don't force a tradeoff between white and colour
brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading
competitive 1-chip DLP projectors*. If you are looking for business and
education projectors or 720p home entertainment projectors, know that choosing
Epson projectors means up to 3x brighter colours. If you are looking for 1080p
home entertainment projectors, you consistently get 2x and up to 3x Brighter
Colours than competitor 1-chip DLP projectors*.
All Epson projectors list both White Brightness and Colour Brightness
specifications, and all have high Colour Brightness.
* Compared to leading 1-chip DLP business and education projectors based
on NPD data, July 2011 through June 2012. Colour brightness (colour light
output) measured in accordance with IDMS 15.4. Colour brightness will vary
depending on usage conditions.
Large and Engaging presentations, even in small spaces
Enjoy flexible placement options with the EB-525W. These short throw
projectors allow you to maximize your office or classroom space by delivering
large images with a short throw distance.
Project a large 100 image from just 1.2m away. The EB-525W enables presenters
to stand close to the board without glare in their eyes and shadows covering the
screen.
Choose Wall Mount, Ceiling Mount or Desktop
Versatile mounting options enable the EB-525W to be used in any environment.
Mount your projector with the NEW short throw wall mount ELP-MB45, ceiling mount
with the ELP-MB23, or simply place it on the table to comfortably accommodate a
modern classroom environment or office presentation.
For the previous owners of EB-400 Series, the existing ELP-MB27 wall mount
can be used with new line up of short throw projectors.
Long
Lasting lamp, low-cost maintenance
Enjoy up to 10,000 hours lamp life in ECO mode. The new lamps will offer
lowered maintenance cost while delivering bright vivid images. The Lamp
Regulator Function automatically adjusts image brightness according to ambient
light levels and image content. This feature helps reduce the load on the lamp
and conserves electricity.
Epson iProjection App
Display and control content from your iPhone, iPad or iPod touch and Android
devices with the Epson iProjection App and any nearby wireless or networked
Epson projector. This free application allows road warriors to travel light and
present from their mobile devices. For teachers, it makes it easy to walk around
the class and still be able to share engaging content larger-than-life. The app
is easy to use and navigate with intuitive menu options that make it simple to
bring your content to the big screen (Optional ELPAP07 Wireless LAN Unit is
required).
Conveniently collaborate with Multi PC Projection
The Multi-PC Projection feature allows a network of up to 50 PCs to be
connected to a single projector. The newest version of this feature allows a
host PC to act as a Moderator who can then select up to 4 of the connected
devices to be projected on the screen. The Moderator function allows the user to
control what image is projected on the screen and prevent tampering.
Advanced Networking
With the EB-525W, its possible to monitor and control networked Epson
projectors from a remote location. Schedule power on or off timings, check
projector status and receive maintenance alerts. Users can even project
presentations in up to four rooms from one networked location. This is possible
both over a wired connection (RJ45) and wirelessly (via optional wireless LAN
unit ELPAP07).
Versatile Connectivity
Not only does the wide-ranging interface correspond with conventional
analogue sources, it boasts a HDMI input which also acts as a MHL (Mobile High
Definition Link) terminal when it is connected to control box (via optional
Epson control box ELPCB02). MHL allows you to mirror high definition content
from an Android mobile device.
Connectivity Panel
Specifications
PRODUCT NAME |
Epson EB-525W |
PRODUCT CODE |
V11H672053 |
WHAT'S IN THE BOX |
|
|
Epson EB-525W1.8m Computer Cable, 4.5m power cable Remote
Control, Batteries x 2, Projector Software Ver. 1.02b (CD ROM), Password
Protect Sticker, Manual |
TECHNOLOGY |
|
Projection System |
Epson 3LCD, 3-chip technology |
LCD Panel |
0.55-inch with MLA (D8) |
OPTICAL |
|
Zoom |
1 - 1.35 (Digital Zoom) |
Screen Size |
39" to 116" |
Projection Distance |
87" screen 0.91m |
Throw Ratio |
0.48 (Zoom: Wide), 0.65 (Zoom: Tele) |
Projection Lens F Number |
1.60 |
Projection Lens Focal Length |
6.4mm |
Focus Method |
Manual Focus |
Offset |
9.51:-1 |
IMAGE |
|
Colour Light Output |
2,800 Lumens |
White Light Output |
2,800 Lumens |
Resolution |
WXGA |
Native Aspect Ratio |
16:10 |
Contrast Ratio |
16,000:1 |
Lamp Hours |
Normal/Eco: 5,000/10,000 Hours |
Lamp Type |
200 W UHE |
Keystone Correction |
Vertical: -15 to +15 degrees Horizontal: -15 to +15
degrees |
CONNECTIVITY |
|
Input: Video |
1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub
15-pin) |
Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
Input: USB Memory Device |
USB Type A Ver.2.0 |
Input: Three-In-One USB Display |
1 x USB 2.0 type B |
Input: Digital |
1 x HDMI |
Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
Input: Control |
1 x USB 2.0 type B, RS232C |
Input: Epson USB Document Camera |
1 x USB 2.0 type B |
Network I/O: |
RJ45 x 1 (100Mbps) |
Wireless Connectivity |
Optional Accessory (ELP-AP07) |
Output: Video |
D-sub 15 pin (black molding) |
Output: Audio |
Stereo mini jack x 1 |
Speaker Output |
16W |
ADVANCED FEATURES |
|
EasyMP Network & Control |
Yes |
EasyMP Network Projection |
Yes |
PC Free Presentations |
Photo / Motion JPEG |
USB Plug 'n Play |
Yes |
AV Mute Slide |
Yes |
Instant Off |
Yes |
Direct Power On/Off |
Yes |
Security |
Kensington-style lock
provision Padlock Security cable hole Password protect
function |
Colour Modes |
Dynamic, Theatre, |
GENERAL |
|
Dimensions D x W x H (excluding feet) |
314.5 x 344 x 94 mm |
Weight |
3.7kg |
Lamp Warranty |
12 months or 750 hours* |
Projector Warranty |
3 Years |
Power Consumption: Lamp on |
Normal: 278W / Eco: 219W |
Power Consumption: Standby |
0.28W (communication off) |
Noise Level |
Normal/Eco 35/28dB |
|
* Whichever comes first. For more information visit
Epson Projector Warranty |
