D-Link stands behind the quality of the DCS-4802E with an includedlimited 5-year warranty. An optional extended warranty doubles the warranty to 10 years and adds next business day hardware replacement.*

Features

2 Megapixel Full HD Video

  • 1/3 megapixel progressive CMOS sensor
  • Full HD resolution (1920 x 1080)
  • Digital Wide Dynamic Range
  • H.264 & MJPEG codec support for streaming and recording
  • Motion detection
  • Privacy mask
  • 3D filtering reduces noise in low-light environments

Indoor or Outdoor Placement

  • Built-in IR LED illuminator with a 60 foot range for use in dark areas
  • Range of mounting options for flexible placement
  • 3-axis adjustment allows for precise positioning of lens
  • Rugged IP66 weatherproof housing

Network

  • Power over Ethernet (PoE) provides easy and flexible integration into your network
  • ONVIF compliant

Specifications

HOME : Back -> Surveillance | Security -> Cameras -> D-Link

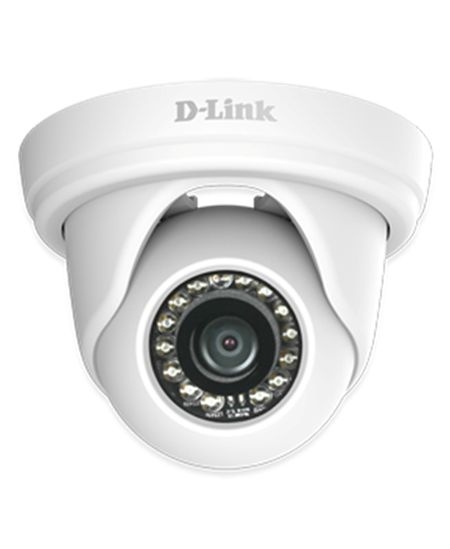

D-Link DCS-4802E Vigilance Full HD Day & Night Camera
Full HD 1920x1080, 1/3 2 Megapixel Progressive CMOS Sensor, 60 ft IR Illumination, 10x Digital Zoom, IP66, H.264 & MJPEG

[Large image available]
Product May Vary From Image

Our Price:
274.9
RRP:$349.95
You Save:$75.05

Part No:409451
Brand:D-Link  Web Site
Manuf No:DCS-4802E
 DCS4802E
Ship Weight:2 KG  Details
Usually Ships: 1-3 Days  More info
Date Added:16/7/2016
Rating: Not Rated
Quantity:
Product Description

Overview

The D-Link DCS-4802E Vigilance Full HD Outdoor Mini Dome Network Camera is a high definitionprofessional surveillance and security solution suitable for small, medium, and largeenterprises. The camera uses a high-sensitivity 1/3 megapixel progressive scan CMOS sensorwith digital WDR image enhancement to deliver balanced video in varying lighting conditions.The compact rugged design makes this camera ideal for deployment in a wide variety ofsurveillance applications. The unique design with 3-axis adjustment allows for precisepositioning of the lens, supporting 360 Pan, 360 Rotation, and 75 Tilt.

High-Quality Streaming & Recording

To maximize bandwidth efficiency and improve image quality, the DCS-4802E provides realtimevideo compression using the H.264 and MJPEG codecs, and supports three separateprofiles for simultaneous video streaming and recording. This versatility enables a wide varietyof security applications, such as monitoring public areas to detect incidents and to coordinateresponses, enforcing access control to restricted areas, deterring criminal activity, or monitoringinventory.

Continuous Monitoring

The DCS-4802Es digital wide dynamic range (WDR) video enhancement gives you improvedimage quality in environments with uneven or difficult lighting, so you can identify subjectsthat are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slidesout of the way to use all available light. The DCS-4802E also has built-in IR LED illuminatorswith a 60 foot range, allowing the camera to keep watch even in complete darkness. Thesefeatures work together to give you a reliable surveillance camera capable of monitoring anarea 24 hours a day.

Flexible Connectivity

The DCS-4802E has a built-in 802.3af compliant PoE module that simplifiesinstallation by providing power and networking connectivity with a singlecable, reducing the need to drill holes or lay additional cabling.

Five Year Warranty

Camera

Hardware Profile

1/3 2 Megapixel Progressive CMOS Sensor

60 ft IR Illumination Distance

Minimum illumination

1 Lux Color mode

0.55 Lux Black and White mode

0 Lux Black and White mode with IR LED on

Automatic Infrared-Cut Filter module for night viewing

10x digital zoom

Minimum object distance: 8"

Focal length: 2.8mm

Aperture F2.0

Angle of view

(H) 96

(V) 54

(D) 108

Adjustment angle (non-motorized)

Pan: 360

Tilt:  75

Rotation: 360

Camera Housing

IP66 compliant weatherproof housing

Image Features

Configurable image size, quality, frame rate, and bit rate

Time stamp and text overlays

Configurable motion detection windows

Configurable privacy mask zones

Configurable exposure time, brightness, saturation, contrast, contrast, sharpness, digital WDR and 3D filter

Video Compression

Simultaneous H.264/MJPEG triple format compression

H.264 multicast streaming

JPEG for still images

Video Resolution

16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360

4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 592, 640 x 480

Frame Rate

Up to 30 fps

External Device Interface

10/100 BASE-TX Ethernet port

Supports 802.3af PoE Class 2

Network

Network Protocols

IPv6

IPv4

ARP

TCP/IP

UDP

ICMP

DHCP client

NTP client (D-Link)

DNS client

DDNS client (D-Link)

SMTP client

FTP client

HTTP / HTTPS

Samba client

PPPoE

UPnP/UPnP port forwarding

RTP / RTSP/ RTCP

IP filtering

CoS

QoS/DSCP

SNMP

Bonjour

ONVIF compliant

Security

Administrator and user group protection

Password authentication

HTTP and RTSP digest encryption

System Management

System Requirements for Web Interface

Browser: Internet Explorer 8 or higher, Firefox, Chrome, Safari

Event Management

Motion detection

Event notification and uploading of snapshots/video clips via e-mail or FTP

Supports multiple SMTP and FTP servers

Multiple event notifications

Multiple recording methods for easy backup

Remote Management

Take snapshots/video clips and save to local hard drive or NAS via web browser

Configuration interface accessible via web browser

OS Support

Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android

D-ViewCam System Requirements

Operating System: Microsoft Windows 8/7/Vista

Web Browser: Internet Explorer 7 or higher

Protocol: Standard TCP/IP

D-ViewCam Software Functions

Remote management/control of up to 32 cameras

Supports all management functions provided in web interface

Viewing of up to 32 cameras on one screen

Scheduled motion triggered, or manual recording options

General Specifications

Weight

0.82 lbs (370 grams) 5%

Power over Ethernet

802.3af Class 2

Power Adapter (not included)

Input: 100 to 240V AC, 50/60 Hz

Output: 12V DC 1.5A

Power Consumption

5.2 Watts 5%

Operating Temperature

-22 to 124 F (-30 to 50 C)

Storage Temperature

-4 to 158 F (-20 to 70 C)

Operating Humidity

20% to 80% non-condensing

Storage Humidity

5% to 95% non-condensing

Certifications

CE (Class A)

CE LVD

FCC (Class A)

C-Tick

Dimensions

Diameter: 4.45 (113 mm)

Heigth: 3.35 (85 mm)

Warranty

Warranty

12 Month Warranty1

5-YearWarranty available only in the USA.

Product Warranty


12 Month Return To Base
