Adaptec RAID 81605Z B1 Single 12 Gb/s PCIe Gen3 w.
AFM-700
Overview
The Adaptec Series 8 RAID adapter family features PMCs 12Gb/s RAID-on-Chip
(ROC), which combines a x8 PCIe Gen3 interface with 12Gb/s SAS ports to enable a
new generation of high- performance RAID adapters for the 12Gb/s storage
ecosystem. Adaptec Series 8 RAID adapters are available with 4, 8, or 16 native
SAS/SATA ports in an LP/MD2 form factor. Themini SAS HD connectorscombined with
SAS HD cables allow for greater flexibility in configuration options by
supporting up to 16 native SAS/SATA ports in a Low-Profile MD2 form factor.
Data center, IT, and general consumer server environments have a broad range
of requirements from basic connectivity to extreme data storage capacities. The
effectiveness at which their data is accessed and protected is crucial to their
ultimate success.. The Adaptec Series 8 12Gb/s RAID Adapter product family
directly addresses the connectivity, performance, and data protection needs,
unmatched by anything in the industry.

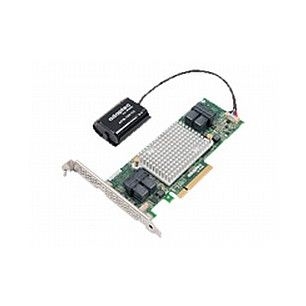

12Gb/s PCIe Gen3 SAS/SATA RAID adapter with 16 internal native ports and
LP/MD2 form factor.
Specifications:
Operating System
Microsoft Windows
Red Hat
Linux
SUSE Linux
Fedora
Debian Linux
Ubuntu Linux
Sun
Solaris
FreeBSD
VMware ESXi
Benefits
Ideal for 12Gb/s performance-hungry
server and workstations platforms, without compromising proven Adaptec
reliability
Customer Needs
High I/O transaction and high
bandwidth processing; solutions that reduce energy consumption and maintenance
costs.
Key RAID Features
Flexible Configuration: HBA Mode
& Auto Volume Mode for automatic deployment
Optimized Disk Utilization
(Multiple Arrays per disk)
Supports up to 256 SAS or SATA devices using SAS
expanders
Support for native 4K sector SAS and SATA devices in addition to
512 byte sector devices
Hybrid RAID 1 & 10
Quick
initialization
Online Capacity Expansion
Copyback Hot Spare
Dynamic
caching algorithm
Native Command Queuing (NCQ)
Background
initialization
Hot-plug drive support
RAID Level Migration
Hot spares -
global, dedicated, and pooled
Automatic/manual rebuild of hot spares
SES
and SAF-TE enclosure management
Configurable stripe size
S.M.A.R.T.
support
Multiple arrays per disk drive
Dynamic sector repair
Staggered
drive spin-up
Bootable array support
Support for Tape Devices,
Autoloaders
MSI-X support for all device driver for all supported Operating
Systems
Secure boot support for the uEFI host bios
USB image available on
start.adaptec.com to boot maxView
GUI from any USB device for enhanced
GUI-based setup and
offline maintenance
Management Utilities
Software
Adaptec maxView Storage
Manager
Web based GUI Management Utility
OS Support: Windows, Linux,
Solaris VMware
Remote configuration, monitoring & notification
Remote
firmware updates
SMI-S Support
SMTP
ARCCONF
Command Line
Interface
SMI-S support for VMware
Adaptec BIOS Configuration Utility
(CTRL+A)
Legacy Configuration Utility
Flashable BIOS
support
Adaptec uEFI BIOS Configuration Utility
HII based confi
guration utility
Flashable BIOS support
Data Transfer Rate
12Gb/s per port
Bus System Interface
8-lane PCIe Gen3
Form Factor
MD2 Low Profile
Cache Memory
1024MB
Connector Configuration
Four internal mini SAS HD
(SFF-8643)
Package Contents
Adaptec RAID 81605Z
adapter
Additional low profile vented bracket
Physical Size
2.535"H x 6.6"L (64mm x
167mm)
Operating Temperature
0C to 50C* (with 200 LFM airflow)
Note: This Adaptec card contains a powerful RAID processor which requires
adequate airflow to operate reliably. Please install this card only into server
or PC chassis with recommended airflow (200 LFM). * Ambient temperature measured
1" away from the RAID processor
Operating Voltage
1.0A @ 3.3VDC 1.1A @
12VDC
Regulatory Certification
CE, FCC, UL, C-tick, VCCI, KCC,
CNS
Environmental Compliance
RoHS
Mean Time Before Failure
(MTBF)
775,000 hours at
40C
