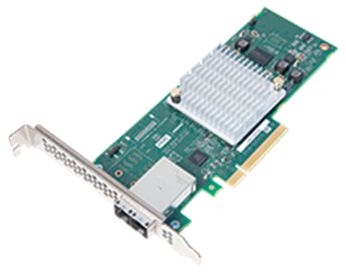

PMC Adaptec HBA 1000-8e
Overview
8 external ports, low-profile/MD2 form factor, PCI-Express (PCIe Gen 3 8x)
Host Bus Adapter (HBA) running the latest unified Smart storage stack, provides
economical non-RAID I/O SAS and SATA connectivity with hard disk, tape, solid
state drives, expanders and backplanes at up to 12Gb/s SAS data rates using
mini-SAS HD connectors
Specifications
| Operating System |
|
Microsoft Windows
Red Hat Linux
SUSE
Linux
CentOS
Ubuntu Linux
VMware ESXi
For a detailed list
seeASK Answer ID 17431. |
|
| Benefits |
|
Ideal for high performing I/O solutions supporting
SAS/SATA HDDs and SSDs requiring maximum connectivity. |
|
| Key
Differentiators |
|
Low-profile, MD2, form factor for up to 16 native
SAS/SATA ports
Lowest power, highest density solution
Unified
management tools with Adaptec RAID adapter family |
|
| Customer Needs |
|
I/O
connectivity offers the highest bandwidth, lowest latency and highest I/O
performance paired with broad operating system support |
|
| Key
Software Features |
|
Support for up to 256* SAS/SATA target
devices
Multi-LUN support
SAS expander support
TLR
SATA
NCQ
Hot Plug Drive
S.M.A.R.T.
MPIO
Multi-Initiator
(Host)/Clustering for SAS
Enclosure Management
SES-2,
SES-3
SFF-8485, SGPIO
SFF-8489, IBPI
BMC Support
*238 SSD/HDDs maximum support
and remainder are reserved for expanders and enclosure
management. |
|
| Management Utilities |
|
Adaptec maxView Storage Manager
Web based GUI
Management Utility
OS Support: Windows, Linux, VMware
Remote
configuration, monitoring & notification
Remote firmware
updates
SMI-S Support
SMTP
Adaptec BIOS Configuration Utility
(CTRL+A)
Legacy configuration utility
Flashable BIOS
support
Adaptec uEFI BIOS Configuration Utility
Flashable BIOS
support
HII GUI support
ARCCONF
Command Line
Interface |
|
| Data
Transfer Rate |
|
12
Gb/s per port |
|
| Bus
System Interface |
|
8-lane PCIe Gen3 |
|
| Form
Factor |
|
MD2
Low Profile |
|
| Connector Configuration |
|
Two
external mini SAS HD (SFF-8644) |
|
| Package Contents |
|
Adaptec 1000-8e adapter
Additional low profile
vented bracket |
|
| Physical Size |
|
2.535"H x 6.6"L (64mm x 167mm) |
|
| Operating Temperature |
|
0C
to 55C* with 200 LFM airflow. Note: This adapter contains a powerful IO
processor which requires adequate airflow to operate reliably. Please
install this card only into server or PC chassis with at least 200 LFM
airflow. *Temperature measured 1 inch from adapter. |
|
| Operating Voltage |
|
0.1A @ 3.3V; 0.7A @ 12V |
|
| Regulatory Certification |
|
CE,
FCC, UL, C-tick, VCCI, KCC, CNS |
|
| Environmental Compliance |
|
RoHS |
|
| Mean
Time Before Failure (MTBF) |
|
2
million hours |
|
