IVSEC AR116A Digital Video Recorder - 16 Channels, DVR, Up to 400FPS, 2x3.5" SATA HDD Slot, 2xUSB2.0, VGA, HDMI, H.264, 1xGigLAN

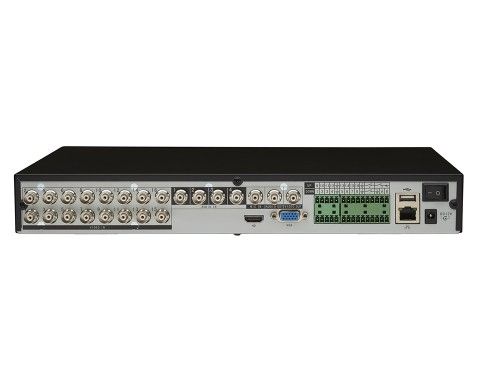

Product May Vary From Image
Part No:
397021
Brand:
IVSEC
Manuf No:
IVR-16211

IVR16211
Ship Weight:
2.5 KG  Details
Usually Ships:
No Longer Available   More info
Product Description
AR116A DVR

Product description

The AR116A takes up to sixteen 960H analogue cameras with 30% greater resolution than the standard 760H security cameras.

Use your PC, mobile, or tablet device to remotely view the footage from your security cameras, and make the most of 4TB supported storage with motion sensing recording. The AR116A has bidirectional audio and also supports dual video output in VGA or HDMI.

For budget performance, this 8 channel DVR security camera system is suited to basic needs of small to medium businesses, and residential customers.

Main features:Digital Video Recorder, 16 channel, 960H, 25fps per channel, 2 bay, 2 year warranty RTB

Additional Information

Maximum Channels 16
Video Compression H.264
Video Output Resolution 1920*1080,1440*900,1280*1024,1366*768,1024*768,800*600
Display Layout 1, 4, 9, 16
Search Method Continuous, Scheduling, Event Triggered
Total Storage (TB) 8
HDD Bays Size Bays x 2, Up to 4TB per HDD
Bundled Software Device Manager Tool, Mobile Application
Protocols TCP/IP, HTTP, DHCP, DDNS, NTP, SMTP, PPPOE, UPnP, P2P
Language English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc.
Audio Streaming Two Way
Power Supply DC12V/3A
Connectors HDD: 3.5" SATA HDD Slot x 2, USB2 Female x 2, Ethernet: RJ-45 Gigabit Port x 1, Dual Video Out (VGA/HDMI), Alarm input x 16 Alarm output x 3, Audio in 4/out 1, BNC video in/out, RS485, Power Jack for DC12V/3A Input
Operating Environment 0C to 50C (32F~122F), Humidity: 20% to 80% RH
In the Box CD-Rom (User Manual), Power Cable
Warranty 24 months parts & labour warranty
Dimensions 360x250x44 mm
Weight 1.7
Model AR116A
In Depth Please refer to the Downloads Tab


Product Warranty


1 Year Return to Base
