Epson EB-535W Short Throw LCD Projector - WXGA, 3400 Lumens, 16,000:1, 5000Hrs, VGA, RCA, USB, HDMI, RJ45, Speakers

[Large image available]
Product May Vary From Image

Our Price:
1264.15
RRP:$1,498.99
You Save:$234.84

Part No:380050
Brand:Epson  Web Site
Manuf No:V11H671053
Ship Weight:5 KG  Details
Usually Ships: 1-3 Days  More info
Date Added:27/11/2014
Rating: Not Rated
Quantity:
Product Description

Epson EB-535W


Short Throw Projectors

High Performance Short Throw Projection For Education and Corporate

Overview

Epson EB-535W short throw projectors provide ultra-bright image quality up to 3,400 lumens both in high colour brightness and in white brightness with 3LCD, 3-chip technology. The EB-535W short throw projectors are ideal for delivering large and engaging presentation content in the classroom or office without having the restriction of space. The EB-535W also features a newly developed high precision short throw lens with greater sharpness and improved focus levels. The long lasting lamp, projecting up to 10,000 lamp hours in ECO mode gives an extended period of reliable performance. Suitable for desktop use with convenient table top placement or using the optional wall mount (ELP-MB45), the EB-535W short throw offers flexible installation in any environment.

KEY FEATURES & BENEFITS

  • 3 x Brighter Colours and reliable performance* 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
  • Crisp Clear Resolution Featuring WXGA image resolution (16:10).
  • Large and engaging presentations, even in small spaces Project large images from short distances with minimal shadows and glare.
  • Long Lasting lamp, low-cost lamp maintenance Up to 10,000 hours in ECO mode.
  • Versatile Connectivity Easily integrate with any system using HDMI and the optional Epson Control box (ELP-CB02).
  • Convenient collaboration for BYOD classrooms Wirelessly share and compare students work from multiple devices, simultaneously, with EasyMP  software / Multi-PC Projection function.

3LCD Technology

3LCD Technology

 All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCDs 3-chip architecture dedicates an entire chip to process each primary colour red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCDs true-to-life colour.

3x Brighter Colours with Epson Projectors

Up to 3x Brighter Colours with Epson Projectors

Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors.

All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.


Large and Engaging presentations, even in small spaces

Enjoy flexible placement options with the EB-535W. These short throw projectors allow you to maximize your office or classroom space by delivering large images with a short throw distance.

Project a large 100 image from just 1.2m away. The EB-535W enables presenters to stand close to the board without glare in their eyes and shadows covering the screen.


Choose Wall Mount, Ceiling Mount or Desktop

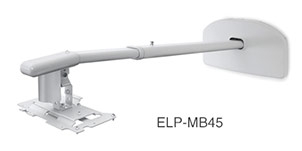

Versatile mounting options enable the EB-535W to be used in any environment. Mount your projector with the NEW short throw wall mount ELP-MB45, ceiling mount with the ELP-MB23, or simply place it on the table to comfortably accommodate a modern classroom environment or office presentation.

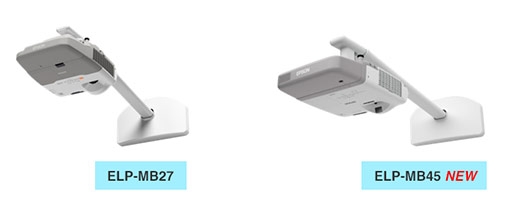

For the previous owners of EB-400 Series, the existing ELP-MB27 wall mount can be used with new line up of short throw projectors.


Long Lasting lamp, low-cost maintenance

Enjoy up to 10,000 hours lamp life in ECO mode. The new lamps will offer lowered maintenance cost while delivering bright vivid images. The Lamp Regulator Function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.


Epson iProjection App

Display and control content from your iPhone, iPad or iPod touch and Android devices with the Epson iProjection App and any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen (Optional ELPAP07 Wireless LAN Unit is required).


Conveniently collaborate with Multi PC Projection

The Multi-PC Projection feature allows a network of up to 50 PCs to be connected to a single projector. The newest version of this feature allows a host PC to act as a Moderator who can then select up to 4 of the connected devices to be projected on the screen. The Moderator function allows the user to control what image is projected on the screen and prevent tampering.


Advanced Networking

With the EB-535W, its possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (RJ45) and wirelessly (via optional wireless LAN unit ELPAP07).

Versatile Connectivity

Not only does the wide-ranging interface correspond with conventional analogue sources, it boasts a HDMI input which also acts as a MHL (Mobile High Definition Link) terminal when it is connected to control box (via optional Epson control box ELPCB02). MHL allows you to mirror high definition content from an Android mobile device.

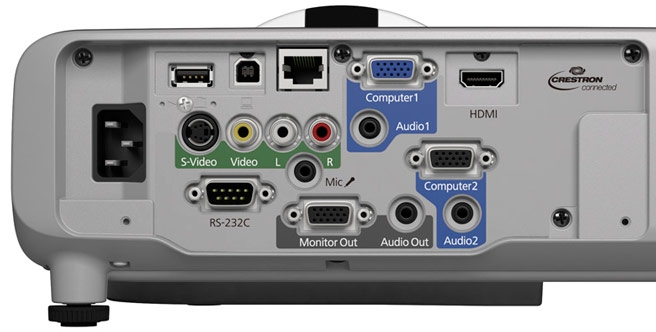

Connectivity Panel


Specifications

PRODUCT NAME Epson EB-535W
PRODUCT CODE V11H671053
WHAT'S IN THE BOX
  Epson EB-535W1.8m Computer Cable, 4.5m power cable Remote Control, Batteries x 2, Projector Software Ver. 1.02b (CD ROM), Password Protect Sticker, Manual
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.55-inch with MLA (D8)
OPTICAL
Zoom 1 - 1.35 (Digital Zoom)
Screen Size 39" to 116"
Projection Distance 87" screen 0.91m
Throw Ratio 0.48 (Zoom: Wide), 0.65 (Zoom: Tele)
Projection Lens F Number 1.60
Projection Lens Focal Length 6.4mm
Focus Method Manual Focus
Offset 9.51:-1
Colour Light Output 3,400 Lumens
White Light Output 3,400 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 16,000:1
Lamp Hours Normal/Eco: 5,000/10,000 Hours
Lamp Type 215 W UHE
Keystone Correction Vertical: -15 to +15 degrees
Horizontal: -15 to +15 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device USB Type A Ver.2.0
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 1 x HDMI
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera 1 x USB 2.0 type B
Network I/O: RJ45 x 1 (100Mbps)
Wireless Connectivity Optional Accessory (ELP-AP07)
Output: Video D-sub 15 pin (black molding)
Output: Audio Stereo mini jack x 1
Speaker Output 16W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations Photo / Motion JPEG
USB Plug 'n Play Yes
AV Mute Slide Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington -style lock provision
Padlock
Security cable hole
Password protect function
Colour Modes Dynamic, Theatre,
GENERAL
Dimensions D x W x H (excluding feet) 314.5 x 344 x 94 mm
Weight 3.7kg
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal: 298W / Eco: 221W
Power Consumption: Standby 0.28W (communication off)
Noise Level Normal/Eco 37/28dB

* Whichever comes first. For more information visit Epson Projector Warranty
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.


Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

Product Warranty


1 Year Return to Base
