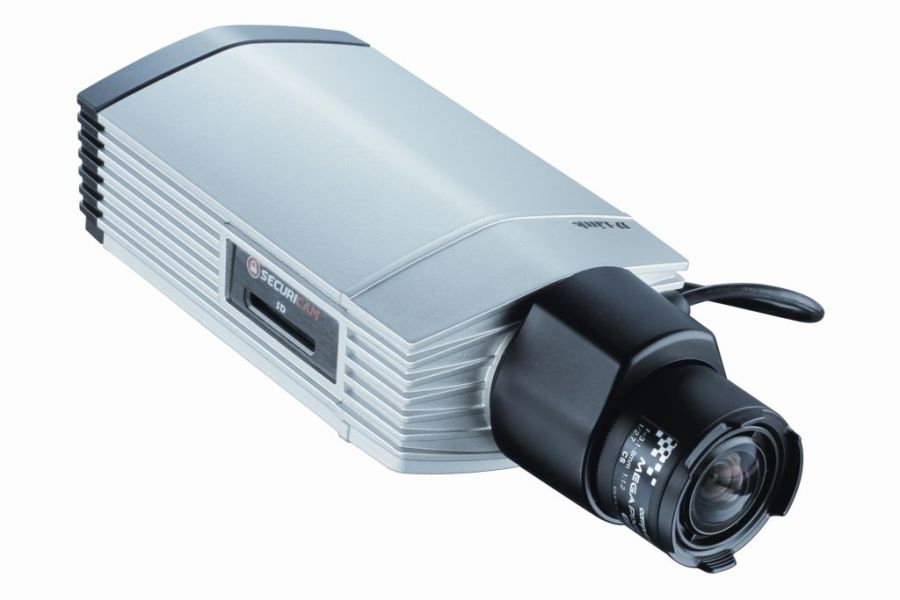

D-Link DCS-3716 Full HD Day & Night WDR Network Camera - Sony Exmor 1/2.8. 3 Megapixel Progressive CMOS Sensor, Full HD 1920x1080 Up to 3M 2048x2536, SD Card Slot, PoE - Silver/Black

[Large image available]
Product May Vary From Image

Our Price:
1072.25
RRP:$1,299.95
You Save:$227.70

Part No:188658
Brand:D-Link  Web Site
Manuf No:DCS-3716
 DCS3716
Ship Weight:2.5 KG  Details
Usually Ships: 1-3 Days  More info
Date Added:15/3/2012
Rating: Not Rated
Quantity:
Product Description

DCS-3716


Full HD Day & Night WDR Network Camera

Overview

  • Sony Exmor 1/2.8 3 Megapixel CMOS progressive sensor
  • Real-time H.264, MPEG-4, and Motion JPEG compression
  • Full HD resolution (1920x1080) up to 3M (2048x2536)
  • DC iris varifocal 3.1 mm (W) to 8 mm (T) F1.2 CS mount lens
  • Built-in removable IR-cut filter for day/night surveillance
  • WDR to handle strong light sources
  • Simultaneous multi-stream support
  • ePTZ
  • Supports multiple access list
  • Privacy Mask feature
  • SD Card slot
  • 2-way audio support
  • 2 alarm inputs / 1 alarm output
  • Power over Ethernet (PoE)
  • 3GPP mobile surveillance
  • Built-in Samba client for NAS
  • Analog BNC output
  • ONVIF compliant

High Resolution Surveillance

The D-Link DCS-3716 is a high-end Full HD Day & Night WDR Network Camera, equipped with a 1/2.8 3 Megapixel WDR Progressive Scan CMOS sensor and a 3.1-8.0 mm DC auto iris lens. The DCS-3716 captures video in both dark and light environments, or even subjects shot against a backlight by neutralizing imperfect lighting and generating a realistic image. In addition, the removable IR-cut filter for day/night functionality provides clear detail and high quality video at any hour of the day. The DCS-3716 incorporates Power over Ethernet (PoE) and an SD card slot, allowing it to be easily installed in a variety of locations.

Multiple Video Streams

The DCS-3716 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks. Additionally, the DCS-3716 supports multicast H.264 MPEG-4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Flexible Connectivity

The DCS-3716 includes input and output ports allowing connectivity to external devices such as IR sensors, switches, and alarm relays. It also comes with an RS-485 interface, providing connectivity to an optional pan/tilt enclosure which effectively adds pan/tilt functionality to the DCS-3716. An additional 12 V interface provides power for an optional LED illuminator.

Wide Dynamic Range (WDR) Applications

The Wide Dynamic Range (WDR) function provides clear images even under backlit conditions where the intensity of illumination can vary significantly, making the DCS-3716 perfect for extreme high-contrast environments. For example, when placed indoors, the DCS-3716 will adjust itself to the intense sunlight that may be streaming in through a nearby window. This makes it an ideal solution for security applications.

Open Network Video Interface Forum (ONVIF) compliant

The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-3716 is ONVIF compliant and therefore interoperable with other manufacturers products on the same network such as cameras, storage systems, video analytics products and Video Management Systems.

Specifications:

Hardware Profile

  • Sony Exmor 1/2.8 3 Megapixel progressive CMOS sensor
  • Minimum Illumination: 0.5 lux (Color); 0.05 lux (B/W)
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • WDR SN ratio : 100 dB
  • 10X digital zoom
  • DC iris varifocal length: 3.1 mm to 8.0 mm
  • Aperture: F1.2
  • Angle of view:
    • (H) 38.7 to 95.9
    • (V) 29.1 to 71.0
    • (D) 48.3 to 123.1

Image Features

  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • 3 Configurable privacy masks zone
  • Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, sharpness

Video Compression

  • H.264/MPEG-4/MJPEG simultaneous format compression
  • JPEG for still images
  • H.264/MPEG-4 multicast streaming

Video Resolution

  • 16:9 - 1920x1080, 1280x720, 800x450, 640x360, 480x270, 320x176, 176x144
  • 4:3 - 2048x1536, 1600x1200, 1024x768, 800x600, 640x480, 480x360, 320x240, 176x144
  • 3M (2048x1536) resolution up to 15 fps, and other resolutions support frame rates up to 30 fps

Audio Support

  • G.726

External Device Interface

  • 2 DI / 1 DO
  • 12 V DC, 200 mA Output
  • RS-485
  • SD card
  • Audio input / output
  • Video output

Network Protocols

  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP ClientHTTP / HTTPS
  • Samba Client
  • PPPoE
  • UPnP Port Forwarding
  • RTP/RTSP/RTCP
  • IP filtering
  • 3GPP
  • IGMP
  • ONVIF compliant

Security

  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption

System Requirements for Web Interface

  • Operating System: Microsoft Windows 7/Vista/XP/2000
  • Browser: Internet Explorer, Firefox, Netscape, Opera

Event Management

  • Motion detection
  • Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP
  • Supports multiple HTTP, SMTP, and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup

Remote Management

  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or NAS via web browser

Mobile Support

  • Pocket PC, or mobile phone with 3GPP playback support

D-ViewCam System Requirements

  • Operating System: Microsoft Windows 7/Vista/XP
  • Web Browser: Internet Explorer 6 or higher
  • Protocol: Standard TCP/IP

D-ViewCam Software Functions

  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions provided in web interface
  • Scheduled motion triggered, or manual recording options

Power

  • Input 12 V DC 1.25 A, 50/60 Hz
  • 802.3af PoE
  • Max. Power Consumption 4 watts

Temperature

  • Operation: 0 to 40 C
  • Storage: -20 to 70 C

Humidity

  • 20% to 80% non-condensing

Weight

580 g

Certifications

CE (Class A)
CE LVD (EN60965-1)
FCC (Class A)
ICES-003
C-Tick

Dimensions


79.7 x 52.9 x 190.9 (W x H x D)

Product Warranty


1 Year Return to Base
